ATS1301 Information
Headframe options details.
Foundation requirements and options.

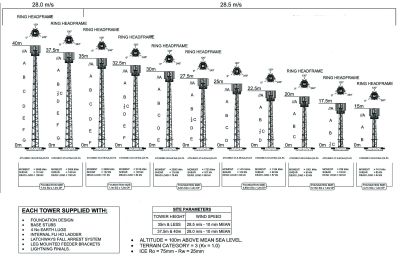

Planning drawings.
ATS1301 Headframe Options
3.0mØ rings with standing plates.
Large separation with high capacity.
3.0mØ rings
Standard headframe.
2.5mØ rings
Slim profile ring headframe.
1.6mØ surmounted ring
Retro fit headframe.
Cranked poles
Slim profile

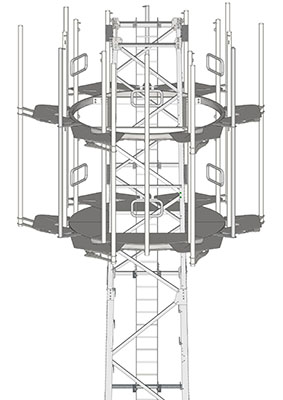

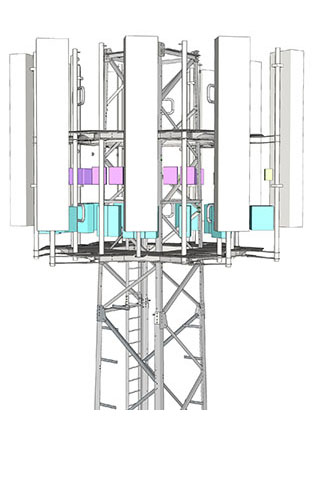

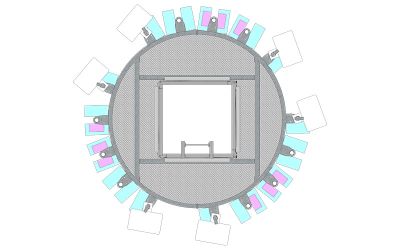

3.0mØ Standing Plate Headframe
Antenna Separation of over 1m
High Orientation Flexibility, 90° to 120°
High Capacity
Supplied with:
Flooring & 9 No 4m Antenna poles
+ 8 No 2.5m poles
Example loading:
9 No Antennas max size 2800 x 550 x 350
42 No RRU units max size 700 x 400 x 190
12 No DC & Fibre Splitter Boxes
2 No GPS Antennas
4 No Ø600 Microwave Dishes

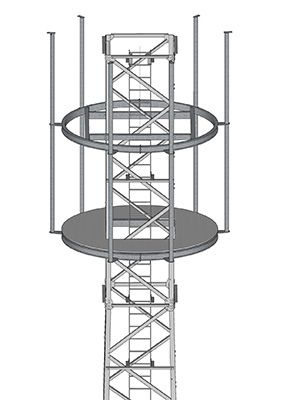

3.0mØ Twin Ring Headframe
Standard headframe
High capacity
Low cost platform working
Supplied with:
Option 1: flooring & 6no 4m Antenna poles
Option 2: flooring & 6no 4m Antenna poles
+ 9no 2.5m poles
Example loading:
6 No Antennas max size 2800 x 550 x 350
24 No RRU units max size 700 x 400 x 250
6 No DC & Fibre Splitter Boxes
2 No GPS Antennas
4 No Ø6oo Microwave Dishes

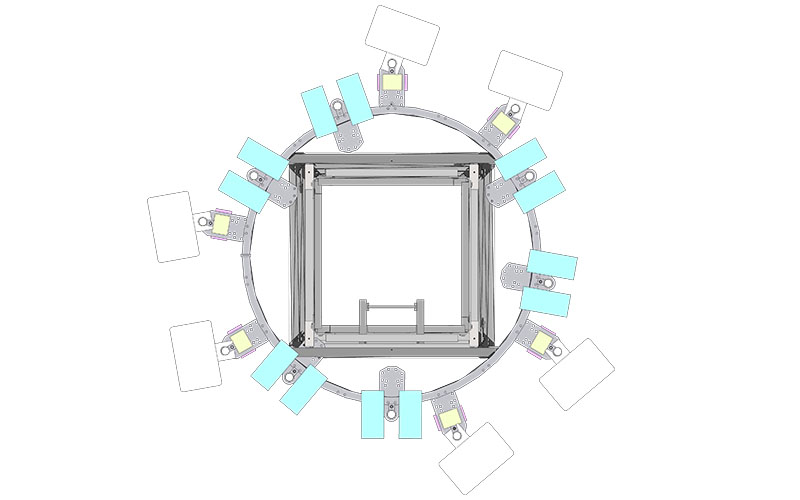

2.5mØ Twin Ring Headframe
Slim profile ring headframe
Planning friendly
Cost efficient
Supplied with:
Option 1: 6no 4m Antenna poles (SRN spec)
Option 2: 9no 4m Antenna poles
Example loading:
6 No Antennas max size 2800 x 550 x 350
24 No RRU units max size 700 x 400 x 250
6 No DC & Fibre Splitter Boxes
2 No GPS Antennas
4 No Ø6oo Microwave Dishes

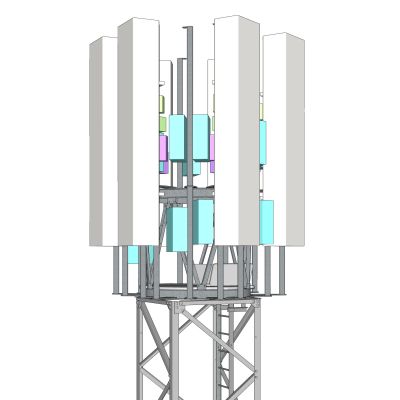

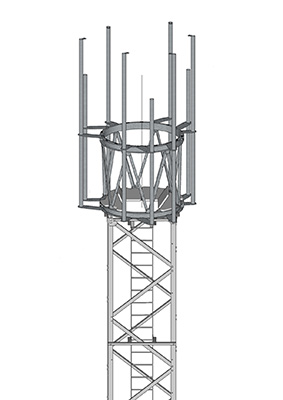

1.6mØ Surmounted Headframe
No tower within working area improves safety.
Slimmest profile headframe with platform
Supplied with:
Option 1: 12no 3.5m Antenna poles
Option 2: 15no 3.5m Antenna poles
Example loading:
9 No Antennas max size 2400 x 550 x 350
24 No RRU units max size 700 x 400 x 250
16 No DC & Fibre Splitter Boxes
2 No GPS Antennas

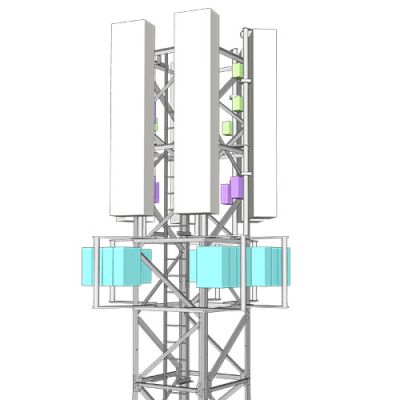

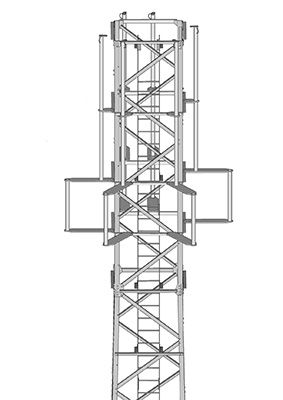

Cranked Pole Mounts
Very slim profile
Full 5G loading
Low cost
Option 1: Individual 4m Antenna pole
Option 2: Set of 5 x 4m Antenna poles
Option 3: Set of 6 x 4m Antenna poles
Example loading:
6 No Antennas max size 2800 x 550 x 350
24 No RRU units max size 700 x 400 x 190
6 No DC & Fibre Splitter Boxes
2 No GPS Antennas
4 No Ø6oo Microwave Dishes
Flexible Pole Mounting
All poles have a flexible mounting facility. Available in various lengths, FLI’s pole-mounting tabs enable on-site adjustment and future orientation flexibility.
Patent pending.

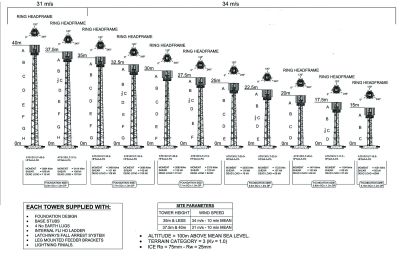

ATS1301 Planning Drawing 34m/s

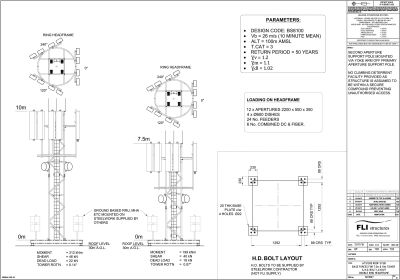

ATS1301 PLanning Drawing Rooftop Stub

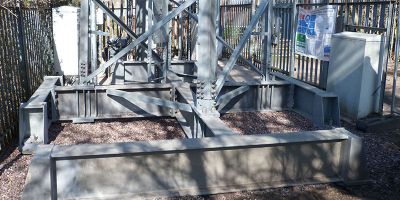

Grillages & Screwpiles
FLI’s steel grillage and screw pile or micro pile foundations are more compact than their equivalent in mass concrete. FLI’s foundations can enable tower upgrades to be accommodated within existing site boundaries and installed around existing concrete bases. This avoids extra legals and removal of existing bases, as well as any sheet piling that may be required to install a new base in a tight space.Outages on existing sites can be significantly compressed.
