5G Cypress Tree
Approved and used by all major operators.
Can accomodate up to 3 users.
Antennas concealed within foliage.
Heights to 30m.
Over 100 installed across Europe.
Extendable and climbable options.
Removable foliage.
Feeders can run both internally and externally.
Hatches positioned for easy rigging.
Type 2b Loading:
6 no 3000 x 550 x 350 antenna apertures
30 no 300 x 300 x 150 MHA units
36 no feeders
2 no Ø600 Microwave Dishes
Typical Site Parameters:
Wind Speed - 26m/s (10 minute mean)
Altitude - 100m above mean sea level
Terrain Category - 3 (Ka=1.0)

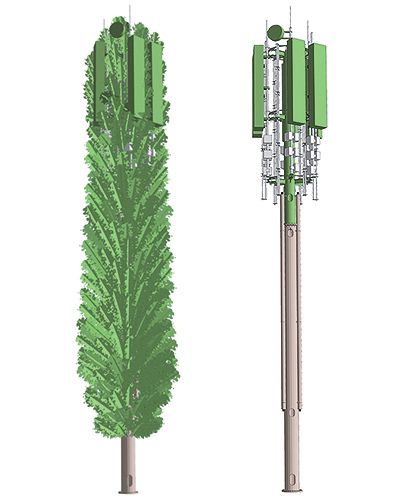

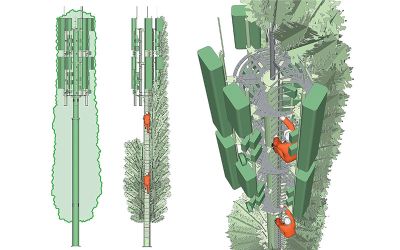

Climbable 5G Cypress
Integrated ladder and platforms.
Clear climbing path.
Safer, faster, easier and cheaper maintenance.
Removes the need for a cherry picker.
Reduces interaction with and risk to foliage during maintenance.
5G Pine Tree
FLI Trees have been in service for over 20 years across Europe.
Approved and used by all major operators.
UK’s only 5G trees.
Accomodates up to 3 operators on 3 user levels.
Wind tunnel tested to 106 knots (122mph).
No fatigue issues.
Climbable structure.
Tested for RF transparency.
Fire resistant foliage.
5G Pine Tree
Type 1a Loading:
12 no 2200 x 550 x 350 antenna apertures
24 no RRU units
12 no MHA units
12 no Routers
6 no BOBS
24 no Feeders
6 no Combined DC and Fibre
4 no Ø600 Microwave Dishes
Typical Site Parameters:
Wind Speed - 26m/s (10 minute mean)
Altitude - 100m above mean sea level
Terrain Category - 3 (Ka=1.0)

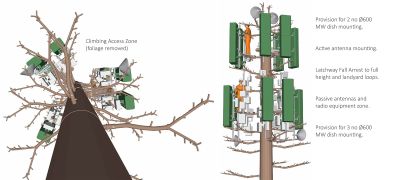

Climbing path typically on step pegs from 3m,
with removable steps from 0 - 3m.
