Ranger Footbridge
Light weight modular bridge kit, for remote locations and challenging access.

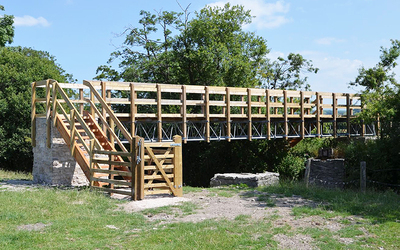

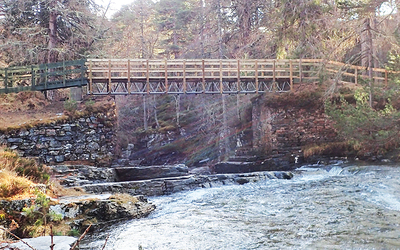

The Ranger Footbridge is ideal for locations that would be difficult to reach with heavy solid beam or fully pre-assembled structures. Every component, including the steel modules, are light enough to be positioned on site by hand. If you can get a Landrover to the location, you can build a Ranger Footbridge.
The bridge kits are available in various widths and with individual spans up to 26 metres.
All structural steel is galvanised to BS EN ISO 1461 and often achieves a 60 year life or better, depending on local corrosion rates.
While the bridge kits are straightforward to install. FLI also has installation teams, which means we can offer a complete design, supply and install service.
-
Straightforward assembly at remote sites.
-
Easy delivery to remote locations.
-

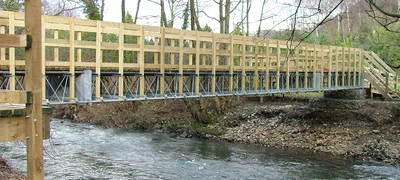

Design approved by the Countryside Commission and Scottish Natural Heritage.
-
Loading has been derived with reference to “Footbridges in the Countryside: Design and Construction – Countryside Commission for Scotland”
-
Designed to BS5950-1. Manufactured to ISO9001.
-
Long life and low maintenance. 100% recyclable at end of life.
-
Individual spans up to 26m with off-the-shelf kits. Longer spans possible using bespoke modules.
Technical summary
The Standard Ranger Bridge comes in two module types (Type A & Type C), supplied across three deck widths (1.20m, 2.00m & 2.55m) with three live load cases (2.3, 3.2 & 5.0 kN/m²). The design standard used is BS5950-1:2000, and the deflection limit throughout is Span/200. All steelwork is galvanised to BSEN1461.
Specifying your Ranger Bridge
In general terms, Type A suits shorter crossings where lighter loads or tighter budgets apply, while Type C is suited to longer spans and heavier pedestrian or light traffic loading. Select your length, and width options from the standard range available, for either module type. Note, all Ranger Bridges, are rated to a maximum load capacity of 5.0 kN/m².
Type A Module
The Type A is the lighter of the two module types, with a bridge height of 1.78m. Maximum recommended spans are as follows:
1.20m wide — up to 16m in length, at 2.3 kN/m²
up to 15m in length at 3.2 kN/m²
up to 13m in length at 5.0 kN/m²
2.00m wide — up to 15m in length, at 2.3 kN/m²
up to 13m in length, at 3.2 kN/m²
up to 12m in length, at 5.0 kN/m²
2.55m wide — up to 15m in length, at 2.3 kN/m²
up to 14m in length, at 3.2 kN/m²
up to 12m in length, at 5.0 kN/m²
Type C Module
The Type C is the heavier-duty module, standing 1.99m tall with larger steel sections, capable of significantly longer spans:
1.20m wide — up to 26m in length, at 2.3 kN/m²
up to 24m in length, at 3.2 kN/m²
up to 20m in length, at 5.0 kN/m²
2.00m wide — up to 25m in length, at 2.3 kN/m²
up to 22m in length, at 3.2 kN/m²
up to 18m in length, at 5.0 kN/m².
2.55m wide — up to 26m in length, at 2.3 kN/m²
up to 23m in length, at 3.2 kN/m²
up to 19m in length, at 5.0 kN/m².
Visit FLI’s e-Store to select your Ranger Bridge, Type, Span, Width and loading case. The e-Store will output your quote or enable you to order online.
